Close Type

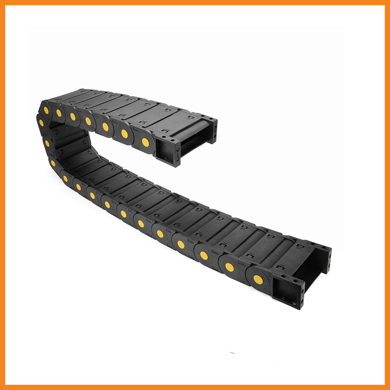

Close Type Drag Chain
Yogi Enterprises provides robust Close Type Drag Chains designed to fully enclose and protect cables and hoses in highly contaminated environments. Ideal for dusty, oily, or particle-heavy applications, these drag chains prevent ingress of foreign matter while maintaining smooth, reliable movement for cables in dynamic applications such as CNC machines, robotics, and heavy-duty automation systems.
Key Features:
- Fully enclosed design for maximum cable protection
- High resistance to dust, oil, and debris
- Durable, wear-resistant reinforced polyamide construction
- Low vibration and noise during movement
- Available in various sizes and bending radii
Applications:
- CNC machinery and cutting systems
- Woodworking and metal processing machines
- Automated assembly lines and robotics
- Packaging and injection molding equipment
- Mining, foundry, and dust-prone environments
| Inner Size | Model | Inner Height (mm) | Inner Width (mm) | Outer Height (mm) | Outer Width (mm) | Bending Radius (mm) |
|---|---|---|---|---|---|---|
| 35mm (Close) | TDC3555C | 35 | 55 | 54 | 83 | 75, 125, 150, 175 |
| TDC3575C | 35 | 75 | 54 | 103 | ||
| TDC35100C | 35 | 100 | 54 | 129 | ||
| TDC35125C | 35 | 125 | 54 | 155 | ||
| 45mm (Close) | TDC4555C | 45 | 55 | 65 | 89 | 100, 150, 200 |
| TDC4575C | 45 | 75 | 65 | 109 | ||
| TDC45100C | 45 | 100 | 65 | 134 | ||
| TDC45125C | 45 | 125 | 65 | 160 |
