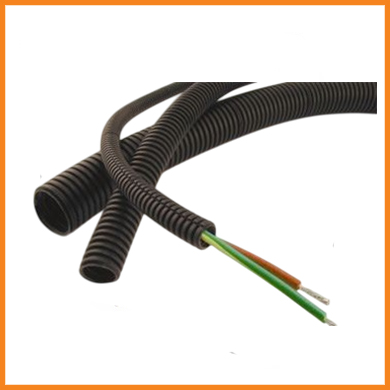

Slitted PVC Flexible Conduit Pipe
Slitted PVC Flexible Conduit Pipe
Yogi Enterprises offers Slitted PVC Flexible Conduit Pipes specially designed for quick installation and easy cable insertion or removal without disconnecting terminals. These conduits are made from high-quality PVC and feature a longitudinal slit along their length, allowing users to add or remove cables post-installation. Ideal for retrofit applications and environments requiring frequent maintenance access.
Key Features:
- Material: High-quality soft PVC
- Construction: Longitudinal slit for easy access
- Color: Black (standard); custom colors on request
- Good flexibility and crush resistance
- Operating Temperature: –10°C to +60°C
Applications:
- Retrofit cable protection
- Temporary wiring setups
- Electrical panels and cabinets
- Machine tool wiring
- Office and desk cable management
| CAT NO. | SIZE | INNER DIAMETER (MM) | OUTER DIAMETER (MM) | BENDING RADIUS (MM) | STANDARD PACKING (MTRS) |
|---|---|---|---|---|---|
| TPPS10 | 10 mm | 7 | 10 | 15 | 100 |
| TPPS16 | 16 mm | 12 | 16 | 25 | 100 |
| TPPS20 | 20 mm | 16 | 20 | 30 | 100 |
| TPPS25 | 25 mm | 21 | 25 | 35 | 50 |
| TPPS32 | 32 mm | 27 | 32 | 40 | 50 |
| TPPS40 | 40 mm | 36 | 40 | 50 | 25 |
| TPPS50 | 50 mm | 44 | -0.5 | 60 | 25 |
