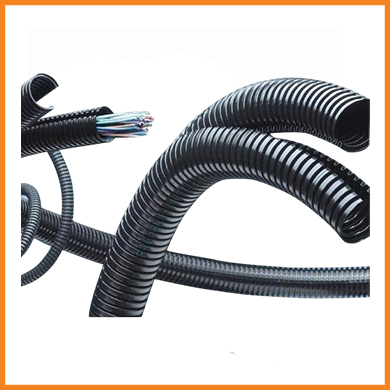

Polyamide Conduit Pipe (PA6)
Polyamide Conduit Pipe (PA6)
Yogi Enterprises offers premium Polyamide Conduit Pipes (PA6) designed for reliable cable protection in demanding industrial environments. Manufactured using high-grade PA6 (Nylon 6) material, these conduit pipes are known for their excellent mechanical strength, thermal stability, and resistance to abrasion, making them ideal for applications requiring robust and flexible cable management solutions.
Material
: Polyamide PA6
Flexural Strength
: 850 kg/cm²
Flexural Modulus
: 20,000 kg/cm²
Tensile Strength
: 630 kg/cm²
Impact Strength
: 20 kg·cm/cm
Temperature Range
: -40°C to +120°C
+150°C Short Term
+150°C Short Term
Certificates
: CE, RoHS, ISO 9001:2015 UI90
Conduits Colors
: Standard black, other colors on requirements
Other
: Fire Retardant
VO & V2 Fire Rated,
100% Environmental Raw Materials
VO & V2 Fire Rated,
100% Environmental Raw Materials
Key Features:
- Material: Polyamide 6 (Nylon 6)
- Color: Black (standard); other colors available on request
- Operating Temperature: –40°C to +120°C (short-term up to 150°C)
- Flame Retardancy: Self-extinguishing (as per UL 94 V2 standards)
Applications::
- Electrical and control panel wiring
- Automotive and railway cable protection
- Machinery and equipment wiring
- Renewable energy installations
- Industrial automation and robotics
| CAT NO. | SIZE | INNER DIAMETER (MM) | OUTER DIAMETER (MM) | BENDING RADIUS R (MM) ± 10% | STANDARD PACKING (MTRS) | ROLL STD PACKING |
|---|---|---|---|---|---|---|
| TP7 | PG-7 | 6.5 | 10 | 15 | 100 | 14 |
| TP9 | PG-9 | 10 | 13 | 20 | 100 | 14 |
| TP11 | PG-11 | 12 | 15.8 | 30 | 50 | 14 |
| TP13.5 | PG-13.5 | 14.3 | 18.5 | 35 | 50 | 12 |
| TP16 | PG-16 | 17 | 21.2 | 40 | 50 | 10 |
| TP21 | PG-21 | 23 | 28.5 | 45 | 50 | 8 |
| TP29 | PG-29 | 29 | 34.5 | 55 | 25 | 8 |
| TP36 | PG-36 | 36 | 42.5 | 60 | 25 | 6 |
| TP48 | PG-48 | 48 | 54.5 | 70 | 25 | 4 |
