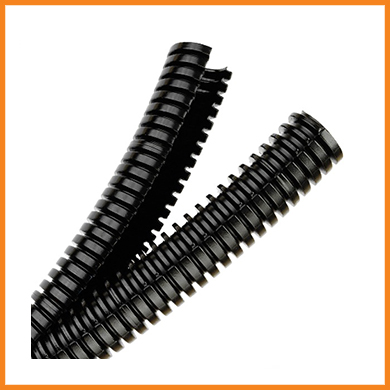

Slitted Polyamide Flexible Conduit Pipe
Slitted Polyamide Flexible Conduit Pipe
Yogi Enterprises’ Slitted Polyamide Flexible Conduit Pipes provide a high-performance solution for cable protection in retrofit or maintenance applications. These conduits are manufactured from high-grade Polyamide 6 (PA6) and feature a longitudinal slit that allows for easy insertion of pre-installed cables without disconnecting them. Ideal for environments requiring quick installation or modifications.
Key Features:
- Material: Polyamide 6 (Nylon 6)
- Longitudinal slit for easy retrofitting
- Excellent flexibility and mechanical strength
- Operating Temperature: –40°C to +120°C (short-term up to 150°C)
- Flame Retardancy: Self-extinguishing (UL 94 V2)
Applications:
- Retrofit cabling and maintenance tasks
- Electrical cabinets and control panels
- Industrial automation and robotics
- Automotive and transportation systems
- Sensitive wiring requiring periodic access
| CAT NO. | SIZE | INNER DIAMETER (MM) | OUTER DIAMETER (MM) | BENDING RADIUS R (MM) ± 10% | STANDARD PACKING (MTRS) | ROLL STD PACKING |
|---|---|---|---|---|---|---|
| TPS7 | PG-7 | 6.5 | 10 | 15 | 100 | 14 |
| TPS9 | PG-9 | 10 | 13 | 20 | 100 | 14 |
| TPS11 | PG-11 | 12 | 15.8 | 30 | 50 | 14 |
| TPS13.5 | PG-13.5 | 14.3 | 18.5 | 35 | 50 | 12 |
| TPS16 | PG-16 | 17 | 21.2 | 40 | 50 | 10 |
| TPS21 | PG-21 | 23 | 28.5 | 45 | 50 | 8 |
| TPS29 | PG-29 | 29 | 34.5 | 55 | 25 | 8 |
| TPS36 | PG-36 | 36 | 42.5 | 60 | 25 | 6 |
| TPS48 | PG-48 | 48 | 54.5 | 70 | 25 | 4 |
