Open Type

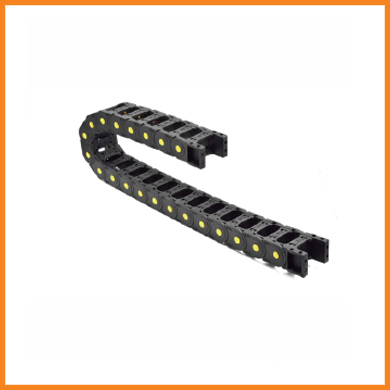

Open Type Drag Chain
Yogi Enterprises offers high-performance Open Type Drag Chains engineered to guide and protect moving cables and hoses. These chains are designed with an openable link cover that allows for quick and easy installation or replacement of cables, making them ideal for dynamic applications in industrial automation, CNC machinery, robotics, and more.
Material
: Nylon
Temperature Range
: -30°C to +90°C
Certificates
: CE, RoHS, ISO 9001:2015
Colour
: Standard Black
Key Features:
- Openable upper flap for easy cable insertion
- Lightweight and low noise during movement
- Made of reinforced polyamide for durability
- Suitable for horizontal and vertical motion
- Resistant to oil, corrosion, and wear
Applications:
- CNC machines and automated equipment
- Robotic arms and motion control systems
- Packaging and material handling machinery
- Cable routing in power and signal systems
- Conveyor and assembly line automation
| INNER SIZE | Model | INNER SIZE | OUTER SIZE | Bending Radius (mm) | ||
|---|---|---|---|---|---|---|
| Height (mm) | Width (mm) | Height (mm) | Width (mm) | |||
| 15mm | TDC1570 | 15 | 20 | 20 | 30 | 55 |
| 18mm | TDC1825 | 18 | 25 | 25 | 35 | 55 |
| TDC1837 | 18 | 37 | 25 | 47 | 55 | |
| 25mm (Open) | TDC2538 | 25 | 38 | 60 | 55, 100 | |
| TDC2557 | 25 | 57 | 40 | 80 | ||
| TDC3550 | 35 | 50 | 77 | |||
| 35mm (Open) | TDC3575 | 35 | 75 | 102 | 75, 125, 150, 175 | |
| TDC35100 | 35 | 100 | 54 | 128 | ||
| TDC35125 | 35 | 125 | 153 | |||
| TDC35150 | 35 | 150 | 178 | |||
| 45mm (Open) | TDC4550 | 45 | 50 | 85 | 100, 150, 200 | |
| TDC4575 | 45 | 75 | 108 | |||
| TDC45100 | 45 | 100 | 133 | |||
| TDC45125 | 45 | 125 | 159 | |||
| TDC45150 | 45 | 150 | 183 | |||
