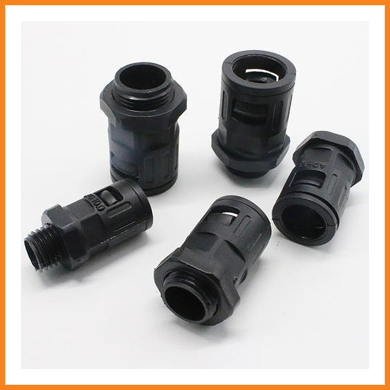

Conduit Hose Gland
Conduit Hose Gland
Yogi Enterprises offers high-quality Conduit Hose Glands designed to securely terminate and seal conduit pipes, providing robust strain relief and environmental protection. These glands are essential for ensuring a reliable connection between flexible conduits and electrical enclosures, control panels, or junction boxes. Compatible with various conduit types, they are built to withstand industrial stresses and environmental exposure.
Material
: Polyamide PA6 V2
Connection Thread
: PG (DIN 40430)
Color
: Black
Temperature Range
: -30°C to +80°C
Other
: UV Resistance (Black)
Easy to Assemble
Halogen Free
Easy to Assemble
Halogen Free
Key Features:
- Material: Nylon PA6 / Brass / Stainless Steel (based on model)
- Thread Types: PG / Metric / NPT (as required)
- IP Rating: Up to IP68 with proper installation
- Flame Retardant and UV Resistant options available
- Temperature Range: –20°C to +100°C (short-term +120°C)
Applications:
- Securing flexible conduits to electrical enclosures
- Control panels and switchgear terminations
- Outdoor and indoor cable protection setups
- Machinery and automation systems
- Telecommunication and data centers
| CAT NO. | SIZE | AG (MM) | SPIRAL DIAMETER (MM) | H (MM) | GL (MM) | A (MM) | B (MM) | MM | STANDARD PACKING (MTRS) |
|---|---|---|---|---|---|---|---|---|---|
| TG 7 | PG 7/AD10 | PG 7 | 6.5 × 10 | 26 | 11 | 6.9 | 18.7 | 15 | 100 |
| TG 9 | PG 9/AD13 | PG 9 | 10 × 13 | 26 | 11 | 10.3 | 21.7 | 18 | 100 |
| TG 11 | PG 11/AD 15.8 | PG 11 | 12 × 15.8 | 26.5 | 11 | 13.3 | 26 | 20 | 100 |
| TG 13.5 | PG 13.5/AD 18.4 | PG 13.5 | 14.2 × 18.4 | 31 | 11 | 15.3 | 28 | 23 | 100 |
| TG 16 | PG 16/AD 21.2 | PG 16 | 16.5 × 21.2 | 33 | 13 | 16.6 | 32 | 27 | 100 |
| TG 21 | PG 21/AD 28.4 | PG 21 | 23 × 28.4 | 39 | 13 | 22.3 | 39.5 | 34 | 50 |
| TG 29 | PG 29/AD 34.5 | PG 29 | 29 × 34.5 | 39 | 14 | 31.7 | 46.5 | 40 | 40 |
| TG 36 | PG 36/AD 42.5 | PG 36 | 36 × 42.5 | 45.5 | 16 | 40.5 | 55.5 | 50 | 20 |
| TG 49 | PG 49/AD 54.5 | PG 49 | 48 × 54.5 | 47.5 | 16 | 51.7 | 67.5 | 62 | 20 |
