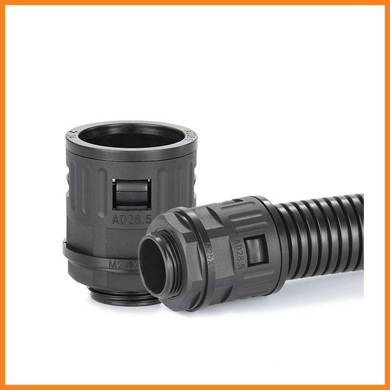

Conduit Metric Gland
Conduit Metric Gland
Yogi Enterprises provides high-performance Conduit Metric Glands that ensure secure, watertight connections between flexible conduits and enclosures using metric threads. These glands offer superior mechanical strength and sealing integrity, making them suitable for a wide range of industrial, commercial, and outdoor applications requiring metric compliance.
Key Features:
- Thread Type: Metric (M16 to M50 and above)
- Material: Nylon PA6 / Brass / Stainless Steel
- IP Rating: Up to IP68 with proper sealing
- Flame Retardant and UV Resistant (optional)
- Temperature Range: –20°C to +100°C (short-term up to +120°C)
Applications:
- Metric panel and equipment terminations
- Control cabinets and electrical enclosures
- Cable protection in machinery and automation
- Outdoor installations with metric interface
- Marine, renewable energy, and rail sectors
| CAT NO. | METRIC | AD (MM) | STAND PKT |
|---|---|---|---|
| TGM12 | M12 | AD13 | 100 |
| TGM16 | M16 | AD15.8 | 100 |
| TGM20.1 | M20 | AD15.8 | 100 |
| TGM20.2 | M20 | AD-21.2 | 100 |
| TGM25.1 | M25 | AD21.2 | 100 |
| TGM25.2 | M25 | AD28.4 | 100 |
| TGM32 | M32 | AD34.5 | 50 |
| TGM40 | M40 | AD42.5 | 20 |
| TGM50 | M50 | AD54.5 | 20 |
| TGM63 | M63 | AD54.5 | 20 |
